Toyota MR2 Turbo Performance Parts Listing
MARCH 2015
We are doing a major update to this page....
We are still building many 3SGTE engines and supplying all the pieces needed for the engines.
The complete long block pricing, Head Pricing and You asemble it kit pricing is accurate but all the individual pieces are being updated so Please call or email to verify before ordering.
This is a fairly comprehensive list of the popular items we supply for the MR2 Turbo and 3SGTE engine. In addition to supplying parts we can do any type of engine and Turbo modification to suit your street or racing needs. We are a fully equipped engine builder, Cylinder head shop, machine shop , fabricator, and welder.
Due to the complexity and labor intensive nature of the MR2 Turbo many of the options we offer are only performed in-house. Engine building is done on your core only as it is difficult and expensive to obtain good used 3SGTE engines for outright or exchange sales.
Engine Parts:
Pistons:
JE Forged. 8.2:1 .040 overbore with Total-Seal Gapless rings. $675.00 Order Now
Any other size or compression ratio. $695.00 Order Now
High Heat coating. Tops and Moly on skirts. $40.00 ea. when pistons are ordered. $49 per piston to coat later. Order Now
Rings:
Total-Seal Gapless rings $149.00 Order Now
Hastings Rings $99.00 Order Now
Bearings:
Rod Bearings $32.00 Order Now
Main Bearings with thrust washers $98.00 Order Now
Gaskets:
Full Engine Gasket Set $189.00 Order Now
Cometic Steel Shim Head Gaskets. $89 Order Now
Valves:
Stainless Steel Swirl Polished Performance Valves
Intake or exhaust $19.00 ea Order Now
Hardware:
ARP Hardware. All we use and recommend
ARP Head Studs $129.00 Order Now
ARP Rod Bolts $49.00 Order Now
ARP Main Studs $89.00 Order Now
ARP Flywheel bolts $45.00 Order Now
Misc:
Timing Belt $39.00 Order Now
Timing belt Idler $45.00 Order Now
Water pump $69.00 Order Now
Thermostat $22.00 Order Now
Machine work:
Head work
Machine Work
Clean, blast and pressure test $60.00 Order Now
3 angle racing valve job with hand lap and back-cut $245.00 Order Now
Remove and replace valve guides $10.00 ea Order Now
Valve guides (each.) $6.00 ea Order Now
Surface head (Up to .040 off.) $65.00 Order Now
Adjust valve (labor only) $125.00 Order Now
Valve shims as needed (each) $8.95 ea Order Now
Grind camshafts ( in pairs only.) $199.00 Order Now
Porting:
Street port. $550.00 Order Now
Port pockets. Match intake and exhaust ports. Blend runners and
Cut back and knife edge dividers.
Race port. $650.00 Order Now
Same as above but much more radical runner work. Poor port velocity makes this a bad plan for a street engine Block work
Hot tank,Mag, Bore and hone with torque plate (up to .040 over.) $225.00
Crankshafts
Grind Crankshaft only $75.00
Micro-polish crankshaft only $40.00
Race prep crankshaft: $400.00 Order Now
Grind, Detail weights and oil holes. Shot Peen. Heat Treat
Knife Edge Crankshaft $195
Con Rods
Race prep Con rods. Set of 4 $375.00 Order Now
Mag. Shot peen. Polish. Re-Size. Bush small ends for floaters
Install ARP rod bolts (includes Rod Bolts.)
Pauter Custom 4340 Forged Con Rods Set of 4 $775.00
Carillo Forged Connecting Rod Set $795.00
We also offer Eagle and SCAT Forged rods for the 3SGTE but we will not assemble and engine
with these rods. We will sell them but we will not accept liability for using them in an engine we build.
$399 a set of Eagle ro SCAT Forged Rods.
Balance rotating assembly $195.00
Front pulley to flywheel. Dynamic balance of crank, rods, pistons, pulley and flywheel.
Flywheel lightening $160.00
Lighten, surface, step, and zero balance
http://www.racetep.com/flywheel.html
Remove secondary butterfly set $180.00 Order Now
Eliminate the TVIS system. No negative effect and actually an increase in low end throttle response and turbo spool up time. Remove valves, plug shafts, match port manifold to spacer plate.
Requires that you send us your Intake Manifold and the TVIS plate.

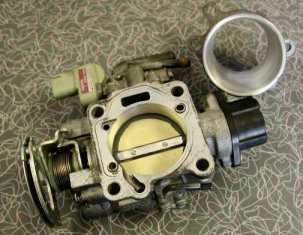

Enlarge Stock Throttle body $280.00
Match port intake and Air Horn for larger throttle body $200.00
Engine Building and Performance Cylinder Heads
What we do:
We really only build our 3SGTE s one way. We pretend every one will see 400+ HP and will need that kind of reliability. As these engines are ultra reliable in the first place it is not that hard to do .. We offer only a few options in our engine building so it is real simple to decide what you want to do ..
All our engines get the same machine work. The only real options are compression ratio, and if you want a street or race port. Our Complete Performance Street and Strip engine (Up to 22 psi boost and 425 HP.
No NOS...If you are going to squeeze then the pistons and valves MUST be coated...
Here is what we do on all our performance Long Block assemblies
New JE forged pistons and Total-Seal rings
Stainless Steel valves (intake and exhaust.)
Street Ported, machined, and set-up Head New valve guides as needed, Seats as needed, Pressure tested, Blanchard ground surface 3 Angle Racing valve job with hand lap and back-cut, Valves adjusted with all needed shims.
TVIS removed and intake manifold and spacer matched
Block machined: Hot tanked, Magnafluxed, Bored and honed with Torque plate, Decked Jet washed and painted, freeze plugs installed
Crank and rods race prepped with matched rod and main bearings Rods are Magnafluxed, Shot Peened, Beam Polished, Resized big ends, Small end bushed for floater wrist pins, and ARP bolts installed...
Crank is Weight and journal Detailed, Index ground to match the bearings, and heat treated
Flywheel machined and lightened and includes ARP Flywheel bolts on assembly
Complete rotating assembly balanced.(Crank,Rods, Pistons, Flywheel, Front Pulley)
Complete gasket set with all needed seals
HKS metal head gasket
ARP head studs,
Main studs,
New timing belt, thermostat, and new water pump...
Add $400 for Forged Eagle Con Rods or $750 for Pauter 4340 Con Rods

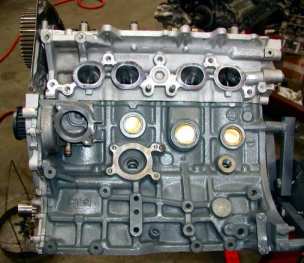

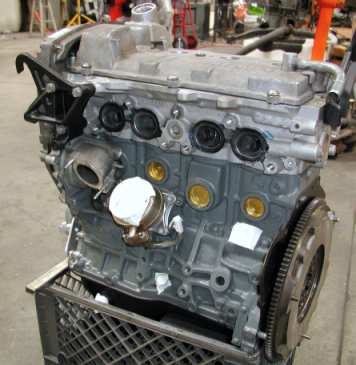

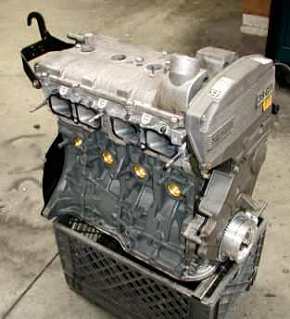

Typical 3SGTE Long block ready to be shipped
For those of you that are servicing the head gasket and feel that you may as well take the opportunity to do the head up right while it is off we offer complete head prep services without having to do a complete engine. Ship us your head, Intake manifold, and TVIS plate. We will send it back to you ready to bolt on.

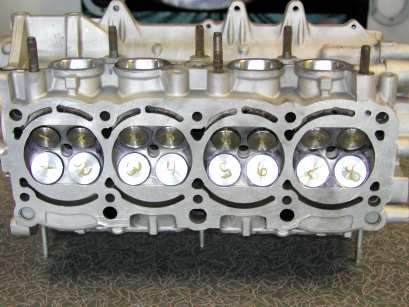

Each head is
Head is cold tanked, Bead blasted and tested for cracks
Valve guides are inspected and replaced as needed

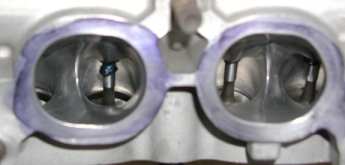

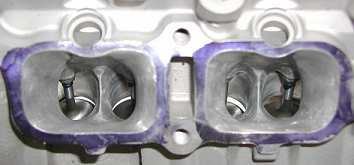

Head is street ported and polished (Swirl finish on intakes and polish in exhaust ports
TVIS is removed and shaft holes plugged

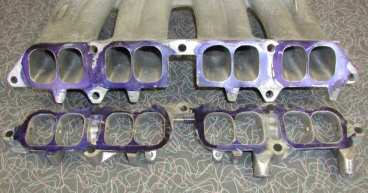

Intake, Head, and spacer are match ported. (you cannot believe how far off these things are and how much performance is gained from this step. Let me just say again . THERE IS NO NEGATIVE EFFECT ON LOW END PERFORMANCE BY REMOVING THE TVIS.
All NEW SS valves are used
3 Angle Racing valve job with hand lap and back-cut on all valves
All New performance valve springs
Head is assembled with new valve stem seals and valve adjustment set using the needed shims
Stage-1:
All above with street port and stock cams $2250
Stage-2:
Stage-1 + performance ground camshafts $2400
Stage-3:
Stage-2+ race port $2500

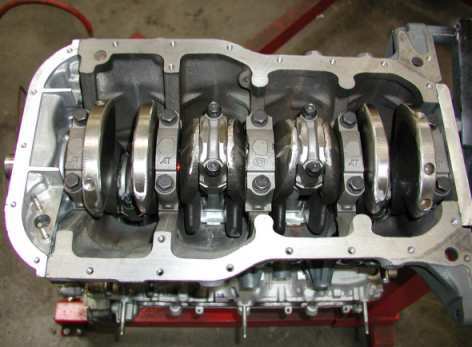

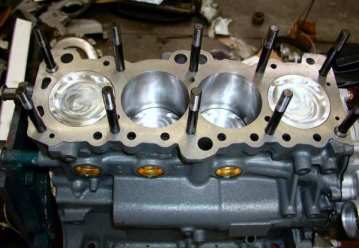

Short Block Assemblies $2500 Order Now
Short block means everything in the bottom end less the head. From the deck of the block to the oil pan.
Long Block assemblies $4800 Order Now
Add $400 for Forged Eagle Con Rods or $750 for Pauter 4340 Con Rods
Long block means from the valve covers to the oil pan and all the timing belt related items.
These engines are assembled less all the external brackets and accessories.This is the engine as listed above...
This is a very cost effective way to get a top quality performance engine. You send us your core engine (either together or in pieces.) and we send it back to you as a ready to assemble kit You will get back .
New JE forged pistons and Total-Seal rings (Rings fit to bores and end gaps set.)
SS valves (intake and exhaust.)
Ported Head with all machine work completed (un-assembled and valves not adjusted.)
Block machined and ready for paint ands freeze plugs. (freeze plugs included.)
Crank and rods race prepped with matched rod and main bearings
Flywheel machined
Complete assembly balanced
Complete gasket set with all needed seals and CometicMLS metal head gasket
ARP head studs, ARP Main studs, New timing belt, thermostat and new water pump
You will then be able to assemble an engine just like the one we supply for a substantial savings. Not only that but you will get a chance to learn everything about what goes into your engine without any of the machine shop hassles.
Engine Options: Add to cost of engine, short block or kit.
High Heat coating on pistons add $43.00 each Order Now
Race porting Add $250.00
-----------------------------------------------------------------------------------------------------------------------------
CT26 Turbo upgrades $895.00 Order Now
You send us your (Good rebuildable) core CT26 and we upgrade it. 10 degree clip on turbine wheel, T04E 57 compressor wheel with machined housing and complete rebuild with high speed balance.
Click this link for Turbocharger catalog page with prices
T3/T4 Hybrid Turbos
T04 Turbos
60-1 and T-Series Turbos .
T3/T4 Conversions and components
This is a partial kit that needs to be finished to fit your particular engine compartment, exhaust, and accessories. It consists of ..
NEW T3/T4 hybrid turbo with High Flow internal wastegate and performance dual port wastegate actuator. Cast exhaust manifold with T3 flange. Downpipe flange with stub downpipe and 02 sensor port. Steel braided Oil feed line, Water lines. Gaskets.
T3/T4 Kit $1995.00 Order Now
Ceramic ball bearing option. Add $550.00 to kit Order Now
External Wastegate option. Add $400.00 to kit Order Now
Blow-Off (Bypass) valves
HKS Racing bypass $189.00
Turbo XS Racing Type H (This is our choice for the MR2) $179.00 Order Now
Bolt-On Adapter for the Turbo XS Valve $69.00
Boost Controllers
TurboXS Manual Boost Controller $79.00 Order Now
TurboXS High Performance Manual Boost Controller $129.00
TurboXS Dual Stage Boost Controller $229.00
Spearco MR2 Turbo Intercooler kit
01-12-2009
We have (1) of these left available...They have been discontinued and are no longer offered. When this is gone they will not be offered again...
$1395.00 Order Now
Fuel injection:
Fuel Pumps $199.00
Add-On Bosch inline fuel pump upgrade.
Regulators
Cartech adjustable rising rate boost referenced fuel regulator $249.00
Injectors
Whatever size you want. call
Springs:
Street Lowering coils. ST brand
Set of 4 springs $239.00 Order Now
Shocks
Tokico Illumina Adjustable Struts
Front $149.00 ea Order Now
Rear $149.00 ea Order Now
Bilstein. ( The very best money can buy. Much better than Tokico and GAB)
Front $179.00 ea. Order Now
Rear $179.00 ea. Order Now
Sway Bars
ST Front (15/16 ) and Rear (7/8 ) set. A huge difference in high speed stability. A must for Auto-X and track use
Pair with all bushings $295.00 Order Now
Brake Rotors
Stock Front $69.00 Order Now
Stock Rear $79.00 Order Now
Gas Slotted Front $105.00 ea Order Now
Gas Slotted Rear $129.00 ea Order Now
Brake Pads
Metal Master Front $59.00 Order Now
Metal Master rear $48.00 Order Now
R4 Carbon Kevlar Pads
Street Front $109.00 Order Now
Race Front $149.00
Street Rear $99.00 Order Now
Race Rear $139.00 Order Now
Steel Braided Brake lines
Set for all 4 corners $139.00
