Cylinder Heads and Components
 |
 |
Mitsubishi 2.6 New Cylinder Heads (and components.)
(Turbo Starion and Conquest...Montero..Raider..D50)
We offer the widest range of cylinder head replacements and performance upgrade options for the 2.6 Mits engine in the world......No matter if you have a Starion or Conquest, Montero, Raider, D50, or B2600 we have the right head to fit your needs....
Anyone that has been working with the 2.6 for any length of time know the cylinder heads were always the weak link...They crack...More so on the Turbo cars but the trucks were not immune to the problem...One bit of overheating and they cracked...For years we, as well as many other shops did crack repair on these heads and it was marginally successful....but expensive and they generally would just crack again in a different cylinder a while later...The major culprit in this problem is the Jet Valves and the steel shroud in the combustion chamber that housed them....This piece was a throwback to the emission control frenzy of the 70's and is no longer needed to pass Smog Inspections...This steel sleeve in the chamber gets extremely hot and transfers that to the weak area between the seats causing them to crack over time....A few years ago we started supplying a new Non-Jet Valve casting made from a better alloy with extra cooling passages and a stronger thicker area between the seats. Although you can still crack one of these new heads you have to really put some effort into it...This is NOT THE CARAVAN HEAD...it is a heavy duty casting designed to cure the problem on the 2.6 Turbos and Truck line....
We get asked all the time for the Jet Valve Eliminator kits for the 2.6 and we do offer them ($59.00)...They simply screw into the stock jet valve location and block off the passage but they do not eliminate the steel shroud in the chamber that causes most of the problem.....If you are stuck using a jet valve head these eliminators are still a good idea..but it is by no means the same thing as having a TEP Non-Jet casting....This is the head we use on all of our performance engine build ups. We will never use an old head on one of our performance engines....
Cylinder Heads and Components
-

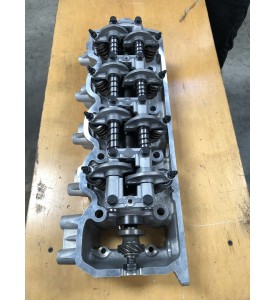

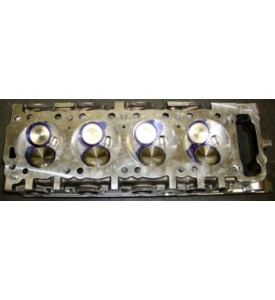

New bare Non-Jet Valve Head
SKU: starion_00050Just like it sounds...The bare head with seats and guides installed with the rocker shaft/cam towers... Ready to have a valve job done and be assembled with your old parts...You will need a head gasket set with stem seals and new head bolts to complete the job.You must replace head bolts everytime you remove the head. If you do not..The bolts will be stretched, not take a torque and you will be doing the job again very quickly...The exception to this is if you install the ARP head studs to replace the bolts...They can be re-used and have 5 times the holding strength of the bolts....$395.00 -
NEW: G54B Non-Jet Cylinder Head.
SKU: Non-Jet_UltimateAs above but with the 3 Angle Racing Valve Job done and 8 new valves. Just assemble with your old springs, retainers, keepers, camshaft, rocker arms and shafts.You will need a head gasket set with stem seals and new head bolts to complete the job..You must replace head bolts everytime you remove the head. If you do not..The bolts will be stretched, not take a torque and you will be doing the job again very quickly...The exception to this is if you install the ARP head studs to replace the bolts...They can be re-used and have 5 times the holding strength of the bolts....
$80.00 upgrade to Stainless Steel Valves.
Upgrade to Steel Shim Head Gasket add $60.00.
Upgrade to ARP head studs $60.00
$835.00 -
New Non-Jet Valve Head with new stock intake/exhaust valves and 3 angle valve job
SKU: starion_00051As above but with the 3 Angle Racing Valve Job done and 8 new valves. Just assemble with your old springs, retainers, keepers, camshaft, rocker arms and shafts.You will need a head gasket set with stem seals and new head bolts to complete the job..You must replace head bolts everytime you remove the head. If you do not..The bolts will be stretched, not take a torque and you will be doing the job again very quickly...The exception to this is if you install the ARP head studs to replace the bolts...They can be re-used and have 5 times the holding strength of the bolts....
$80.00 upgrade to Stainless Steel Valves.
$699.00 -
New Non-Jet Valve Head with new stock intake/exhaust valves and 3 angle valve job, Complete Head Gasket Set and NEW Heavy Duty Head Bolt Set
SKU: starion_00052As above but with the 3 Angle Racing Valve Job done and 8 new valves. Just assemble with your old springs, retainers, keepers, camshaft, rocker arms and shafts.You will need a head gasket set with stem seals and new head bolts to complete the job..You must replace head bolts everytime you remove the head. If you do not..The bolts will be stretched, not take a torque and you will be doing the job again very quickly...The exception to this is if you install the ARP head studs to replace the bolts...They can be re-used and have 5 times the holding strength of the bolts....
$80.00 upgrade to Stainless Steel Valves.
Upgrade to Steel Shim Head Gasket add $60.00.
Upgrade to ARP head studs $60.00
$835.00 -
Street Prepared Head
SKU: starion_00053As above but complete and assembled with NEW heavy duty valve springs, retainers, keepers, NEW camshaft (stock or performance cam) valve stem seals, complete head gasket set with all needed gaskets including heavy duty head gasket, and new heavy duty head bolt set.
$80.00 upgrade to Stainless Steel Valves.
Upgrade to Steel Shim Head Gasket add $60.00.
Upgrade to ARP head studs $60.00$1,195.00 -
Street PERFRORMANCE Head
SKU: starion_00054As above but complete and assembled with Street Port and Polish, Stainless Steel Intake and Exhaust valves, ARP Head Studs, Steel Shim head gasket. This is the exact head we use on all our Performance Street Engines.$1,795.00 -
-
Race port and polish with chamber cc (Not for street car use !!!!!!)
SKU: starion_ch_0002Race port and polish with chamber cc (Not for street car use !!!!!!)$650.00 -
-
ARP Head stud set to replace head bolts (the best insurance against blown head gaskets.)
SKU: starion_ch_0004ARP Head stud set to replace head bolts (the best insurance against blown head gaskets.)$119.00 -
-
Heavy Duty head bolts (stronger, but still cannot be re-used.)
SKU: starion_ch_0006Heavy Duty head bolts (stronger, but still cannot be re-used.)$79.00 -
Stud and Nut set for Intake and Exhaust manifold to head (16 studs, 8 high heat nuts, 8 std nuts)
SKU: starion_ch_0007Stud and Nut set for Intake and Exhaust manifold to head (16 studs, 8 high heat nuts, 8 std nuts)$49.00 -
Stud and Nut set for Exhaust manifold to head only (8 studs, 8 high heat nuts )
SKU: starion_ch_0008Stud and Nut set for Exhaust manifold to head only (8 studs, 8 high heat nuts )$39.00 -
Stainless Steel EXHAUST MANIFOLD to HEAD STUDS with High Heat Nuts set of 8
SKU: starion_ch_0009Stainless Steel EXHAUST MANIFOLD to HEAD STUDS with High Heat Nuts set of 8$89.00 -
Stainless Steel Intake or Exhaust valves
SKU: starion_ch_0010Stainless Steel Intake or Exhaust valves$18.00 -
Stock replacement Intake or Exhaust valves
SKU: starion_ch_0011Stock replacement Intake or Exhaust valves$12.00 -
-
Head gasket set with H/D head gasket and Viton valve stem seals
SKU: starion_ch_0015Head gasket set with H/D head gasket and Viton valve stem seals$109.00 -
-
-
New Stock replacement camshaft for Turbo or Carb engine and limited availability
SKU: starion_ch_0018New Stock replacement camshaft for Turbo or Carb engine and limited availability$249.00 -
Regrind your stock cam to performance specs
SKU: starion_ch_0019Regrind your stock cam to performance specs$169.00 -
TEP Performance camshaft for Turbo and Hydraulic lifter rockers
SKU: starion_ch_0020TEP Performance camshaft for Turbo and Hydraulic lifter rockers$229.00 -
TEP Performance camshaft for Turbo and Mechanical Adjuster rockers
SKU: starion_ch_0021TEP Performance camshaft for Turbo and Mechanical Adjuster rockers$229.00 -
TEP Performance camshaft for Carb and mechanical adjusters
SKU: starion_ch_0022TEP Performance camshaft for Carb and mechanical adjusters$229.00 -
New Hydraulic Valve adjusters (lifters...)
SKU: starion_ch_0023New Hydraulic Valve adjusters (lifters...)$11.00 -
