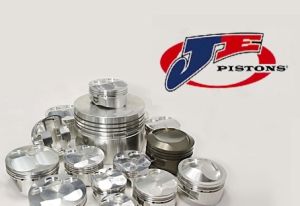

TB48DE
NISSAN TB48DE
JE designs are specifically engineered for extreme applications up to, and including, professional competition. In this environment, the higher compression ratios, highest boost or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy.
Dome/Dish requires no deburring or preparation and feature smooth flowing radii for excellent flame travel.
Pin fitting, wire locks, and rings included
Deck Clearance is -.030" on all parts except for +23.8cc parts which are -.010" deck clearance.
Don't see what you need? We will build a custom set of pistons for any application. Just click here to send us a
TB48DE
| Parts# | Bore | Oversize | Stroke (mm) | Rod (mm) | C/D (mm) | Head CC's | C/R With .040 | Dome CC's | Included Ring Set | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 327828 | 99.5 | STD | 102 | 163.5 | 40.25 | 89 | 8.5:1 | -0.8 | JG1006-3917 |
$1,349.99
|
|
| 327844 | 100 | 0.5 | 108 | 163.5 | 37.25 | 89 | 11.4:1 | 23.8 | JG1006-3937 |
$1,349.99
|
|
| 327843 | 99.5 | STD | 108 | 163.5 | 37.25 | 89 | 11.3:1 | 23.8 | JG1006-3917 |
$1,349.99
|
|
| 327842 | 100.5 | 1 | 108 | 163.5 | 37.25 | 89 | 10.0:1 | 10 | JG1006-3957 |
$1,349.99
|
|
| 327841 | 100 | 0.5 | 108 | 163.5 | 37.25 | 89 | 10.0:1 | 11 | JG1006-3937 |
$1,349.99
|
|
| 327840 | 99.5 | STD | 108 | 163.5 | 37.25 | 89 | 10.0:1 | 11.6 | JG1006-3917 |
$1,349.99
|
|
| 327839 | 100.5 | 1 | 108 | 163.5 | 37.25 | 89 | 8.5:1 | -8.8 | JG1006-3957 |
$1,349.99
|
|
| 327838 | 100 | 0.5 | 108 | 163.5 | 37.25 | 89 | 8.5:1 | -8 | JG1006-3937 |
$1,349.99
|
|
| 327837 | 99.5 | STD | 108 | 163.5 | 37.25 | 89 | 8.5:1 | -7 | JG1006-3917 |
$1,349.99
|
|
| 327836 | 100.5 | 1 | 102 | 163.5 | 40.75 | 89 | 11.4:1 | 23.8 | JG1006-3957 |
$1,349.99
|
|
| 327835 | 100 | 0.5 | 102 | 163.5 | 40.75 | 89 | 11.3:1 | 23.8 | JG1006-3937 |
$1,349.99
|
|
| 327834 | 99.5 | STD | 102 | 163.5 | 40.75 | 89 | 11.2:1 | 23.8 | JG1006-3917 |
$1,349.99
|
|
| 327833 | 100.5 | 1 | 102 | 163.5 | 40.25 | 89 | 10.0:1 | 15.3 | JG1006-3957 |
$1,349.99
|
|
| 327832 | 100 | 0.5 | 102 | 163.5 | 40.25 | 89 | 10.0:1 | 16 | JG1006-3937 |
$1,349.99
|
|
| 327831 | 99.5 | STD | 102 | 163.5 | 40.25 | 89 | 10.0:1 | 16.8 | JG1006-3917 |
$1,349.99
|
|
| 327830 | 100.5 | 1 | 102 | 163.5 | 40.25 | 89 | 8.5:1 | -2.7 | JG1006-3957 |
$1,349.99
|
|
| 327829 | 100 | 0.5 | 102 | 163.5 | 40.25 | 89 | 8.5:1 | -1.8 | JG1006-3937 |
$1,349.99
|
|
| 327845 | 100.5 | 1 | 108 | 163.5 | 37.25 | 89 | 11.5:1 | 23.8 | JG1006-3957 |
$1,349.99
|
