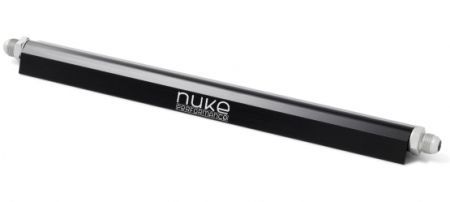

High-Flow Fuel Rail (Nuke Performance) - M20/M5x/S5x Engines

performance/race. If you are designing a custom fuel injection system for your stroker, swap, or turbo project and need to include a high-flow fuel rail, this is it. This Nuke fuel rail is imported from Sweden and is cnc?d from a 6082 aluminum extrusion. It includes individual stainless steel injector safety brackets. Installation note: Please understand this is not a simple fuel rail; only use this rail if you are designing an AN-compatible fuel system. M20 installation note: When you are fitting this rail to a M20 engine you will need to fabricate some simple mounting brackets and will need to do a little clearancing if you are using the stock intake manifold. Technical Information: -Compatible with most Bosch-style Fuel Injectors (port dimensions available upon request). -17.5mm inside diameter -Includes two -6AN fittings (with Nitrile o-rings) supports up to roughly 500hp (larger fittings for higher-outputs available by request). The rail itself is tapped to ??UNF.
